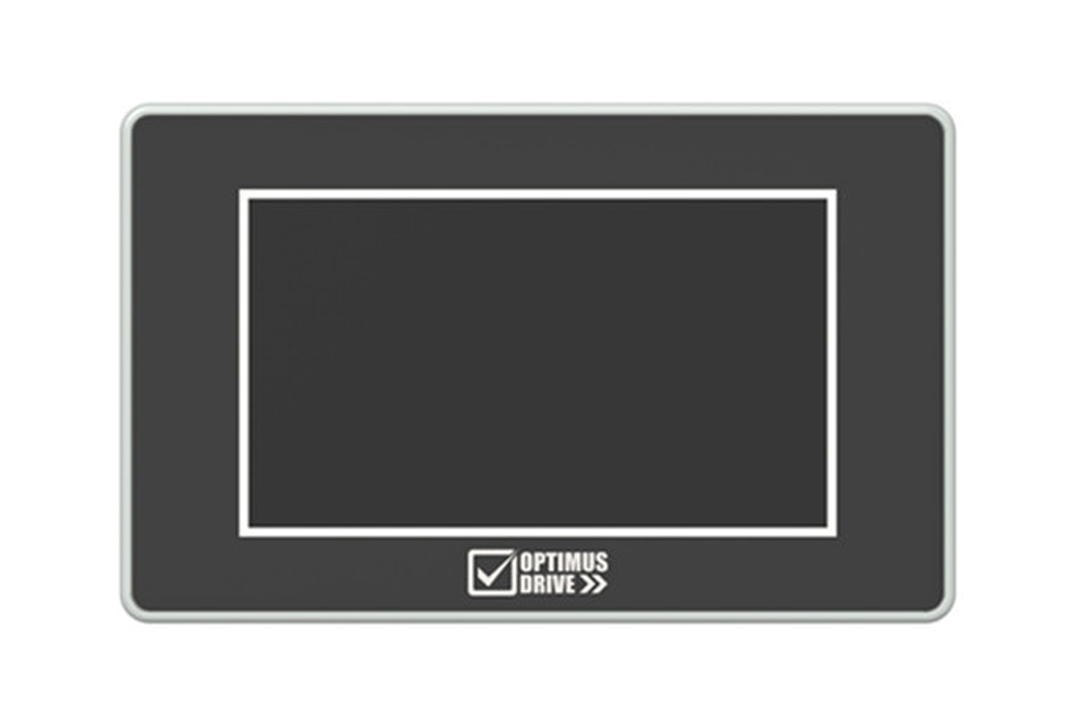

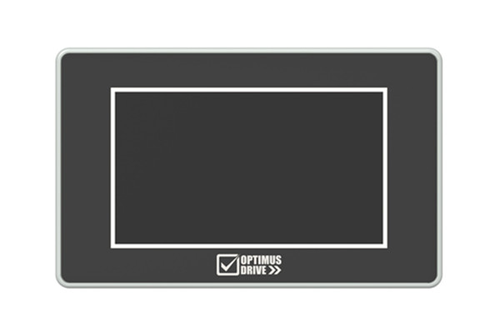

Панель оператора, 4.3" TFT LCD 16 бит, 800x480, ARM 720 МГц, 64MB RAM+128MB Flash, USB C, 2 COM, RTC

Артикул: 0071
Артикул производителя: VI20-043S-F-RU
Производитель: Optimus drive
Сенсорные панели оператора являются элементами человеко-машинного интерфейса (Human Machine Interface) и предназначены для отображения различной текстовой и графической информации о работе оборудования Высокие разрешение, яркость и контрастность. Два последовательных порта поддерживают RS232/485/422. Порт USB поддерживает хранение и загрузку данных через USB. Питание через USB. Легкий прочный пластиковый корпус, высокая надежность, низкая стоимость. Привлекательный дизайн, быстрая загрузка. Программное обеспечение VI20studio для настройки панели, богатая библиотека, мощные функции. Таблица параметров модели VI20-043S-F-RU
Технические характеристики
Экран
4.3' 16:9 TFT ЖК дисплей
Разрешение
800x480
Цвет
16 бит
Яркость
250 кд/м2 (up to 275 кд/м2)
Подсветка
LED
Цикл жизни экрана
50000 ч
Сенсор
4-проводной сенсорный резистивный экран
ЦПУ
720 МГц ARM
Память
64 Мб RAM+128 Мб Flash
Часы реального времени
Да
Ethernet
Нет
Карта SD
Нет
Порт USB
1 интерфейс OTG типа C
Режим загрузки программы
USB в режиме Slave. USB накопитель (требуется адаптер)
Последовательный порт связи
COM1:RS232/RS485/RS422. COM3:RS232
Угол обзора экрана (T/B/L/R)
80°/80°/80°/80°
Номинальная мощность
< 2,5 Вт
Напряжение питания
24 В пост. тока, рабочий диапазон 9 ~ 28 В пост. тока
Защита
Защита от перенапряжения
Допустимая потеря мощности
< 5 мс
Стандарты CE & RoHS
Согласно стандартам EN61000-6-2:2005 и EN61000-6 4:2007,. перенапряжение ± 1 кВ, групповой импульс ± 2 кВ,. электростатический контакт 4 кВ и воздушный разряд 8 кВ. Соответствует RoHS
Рабочая температура
0~50 °С
Температура хранения
-20~60 °С
Защита от УФ излучения
Не работайте в условиях сильного ультрафиолетового. излучения (например, под прямыми солнечными лучами)
Влажность
10 ~ 90% отн. (без конденсата)
Сейсмостойкость
10 ~ 25 Гц (2G / 30 мин по осям X, Y и Z)
Охлаждение
Естественное
Уровень защиты
Передняя панель соответствует IP65. (устанавливается в шкаф с плоской передней стенкой),. задняя часть соответствует IP20
Материал
Промышленный пластик
Монтажные размеры
132 мм x 80 мм
Габаритные размеры
138 мм x 86 мм x 32 мм
Масса
Около 300 г
